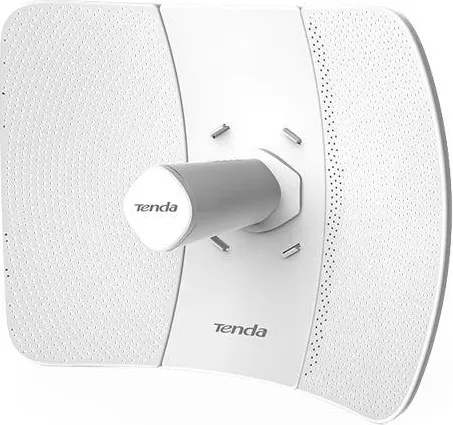

O9 5GHz 11ac 23dBi Gigabit Outdoor CPE

What it does

O9 5GHz 11ac 23dBi gigabit outdoor CPE is designed to PtP and PtMP solutions for privated ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional dual polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 25km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.

Main Features

  5GHz 11ac 867Mbps

  One Gigabit ethernet port

  23dbi dual polarization antenna

  IP65 weatherproof enclosure

  6000V Lightning Protection

  AP, Station, WISP operating mode supported

  Up to 60 meters of flexible deployment with included PoE adapter



25+km transmission Range

O9 adopts of independent power amplifier and 23dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 25km.



450+Mbps Wireless Throughput

O9 adopt of 11AC wave2 technology, it delivers 867Mbps speed rate at 5GHz radio. Come with Gigabit ethernet LAN port , the maximum throughput test for PtP connection can be up to 450Mbps.



6000V Surge Protection Design

O9 adopts of 6000V ethernet port Surge protection design, It can be more robust in the thunder season.



Easy to Assemble and Install

O9 adopts of three-axis alignment, it is easy to assemble in seconds – no tools needed. Only a single screw driver is required for pole-mounting.



Product Information

Model: O9

Dimension: 391.5*280*223mm

Deployment: Pole Mount

Application Scenarios: PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance



Hardware

Frequency Range: 5GHz

Compliant Standards: IEEE 802.11a/n/ac

Maximum Wireless Rate: 867Mbps

Interfaces: 1*10/100/1000Mbps Ethernet Port

Antenna Polarization: Dual Polarization

Antennas Gain: 23dBi

Antenna Beamwidth: Horizontal: 10° Vertical: 10°

GND: /

Reset Button: 1*Reset Button

Power Consumption: 7.5W

Waterproof Level: IP65

LED Indicator: PoE/LAN, LED1, LED2, LED3

Power Method: 24V0.5A Passive PoE

Lightning Protection: 6000V

Passive PoE: Passive power over ethenet via PoE/LAN (+4,5pins-7,8pins )

                       Voltage range: 21-25V DC

Reception Sensitivity

11a 6Mbps -96dBm±1.5dBm

11n MCS7 HT20 -72dBm±1.5dBm

11ac MCS9 HT80 -65dBm±1.5dBm

Software

TDMA: Support

Operating mode: AP/Station/WISP/P2MP/WDS Repeater/Router

Enable/Disable Wireless Radio: Support

SSID Hidden: Support

Wireless Client isolation: Support

SSID Isolation: Support

Channel Bandwidth: 20/40/80MHz

Channel Shift: Support

Wireless Access Control: Support

Weak Signal Client Limitation: Support

Transmission Power: Adjustable power by 1dBm

WMM Capable: Support

APSD Capable: Support

Wireless Security: 64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2

Transparent Bridge: Support

VLAN Tagging for SSID: Support

DHCP Server: Support

VPN Pass-Through: PPTP, L2TP

Remote Web access: Support

Schedule Reboot: Support

Page Timeout: Support

Ping Watchdog: Support

Dyndns: noip, dyndns. org

Network Diagnoses: Ping, Traceroute, Signal Scan

Time: Support

Firmware upgrade: Support

Backup/Restore Configuration: Support

Username Managerment: Support

System Logs: Support

Managed By Controller: PC Software CPE Assistant
